Koupit PCX1C820MCS1GS s BYCHPS
Koupit se zárukou

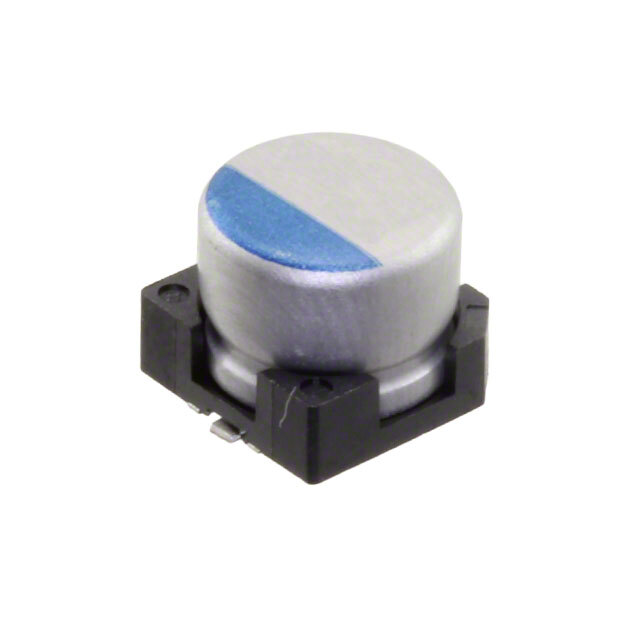

PCX1C820MCS1GS
- Part Number:
- PCX1C820MCS1GS
- Výrobce:
- Nichicon
- Popis:
- CAP ALUM POLY 82UF 20% 16V SMD
- Stav volného vedení / RoHS:
- Bez olova / V souladu RoHS
- dostupné množství:
- 13349 Pieces
Úvod
BYCHIPS je distribuční odrůda pro PCX1C820MCS1GS, máme zásoby pro okamžitou přepravu a také k dispozici pro dlouhodobé zásobování. Zašlete nám svůj plán nákupu PCX1C820MCS1GS e-mailem vám poskytneme nejlepší cenu podle svého plánu.
Specifikace
| napìtí: | 16V |
|---|---|
| Typ: | Polymer |
| Tolerance: | ±20% |
| Povrchová montáž Land Velikost: | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Velikost / Rozměry: | 0.315" Dia (8.00mm) |
| Série: | PCX |
| Zvlněný proud - nízká frekvence: | - |
| Zvlněný proud - vysoká frekvence: | 1.3A @ 100kHz |
| Obal: | Original-Reel® |
| Paket / krabice: | Radial, Can - SMD |
| Ostatní jména: | 493-13686-6 |
| Provozní teplota: | -55°C ~ 125°C |
| Typ montáže: | Surface Mount |
| Úroveň citlivosti na vlhkost (MSL): | 1 (Unlimited) |
| Výrobní standardní doba výroby: | 21 Weeks |
| Výrobní číslo výrobce: | PCX1C820MCS1GS |
| Životnost @ Temp.: | 3000 Hrs @ 125°C |
| Rozestup vývodù: | - |
| Impedance: | - |
| Výška - Sedící (Max): | 0.315" (8.00mm) |
| Rozšířený popis: | 82µF ±20% 16V Aluminum Polymer Capacitor Radial, Can - SMD 45 mOhm 3000 Hrs @ 125°C |
| ESR (Equivalent Resistance Series): | 45 mOhm |
| Popis: | CAP ALUM POLY 82UF 20% 16V SMD |
| kapacitní: | 82µF |
| Aplikace: | General Purpose |
| Email: | [email protected] |
